YHZS Mobile Concrete Batching Plant

High-Efficiency, All-in-One Production Solutions

What is YHZS?

The YHZS series represents our premium Mobile Concrete Batching Plants. The model designation breaks down as follows: “Y” for Mobile, “H” for Concrete, “Z” for Batching Plant, and “S” for Twin-Shaft Main Mixer.

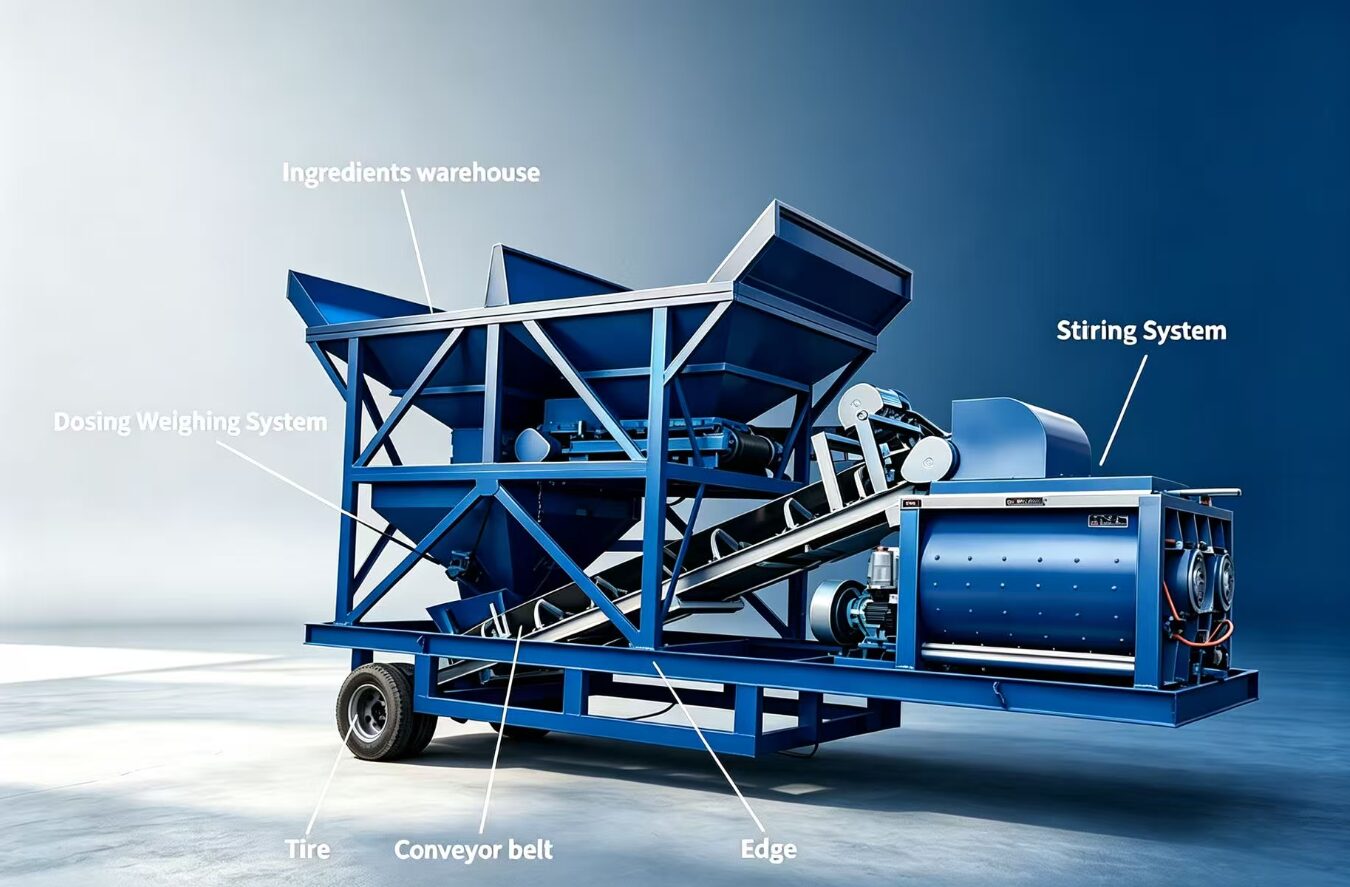

As a highly integrated production unit, the YHZS combines material storage, precise weighing, conveying, mixing, discharging, and an automated control system into a single towable chassis. Characterized by exceptional mobility, rapid assembly/disassembly, and streamlined management, it is the ideal solution for dynamic construction projects, including highways, railways, bridges, ports, and hydropower infrastructure.

Core System Advantages: Engineered for Superior Performance

1. Advanced Mixing System

Equipped with a high-efficiency twin-shaft concrete mixer featuring wear-resistant and impact-proof mixing arms, guaranteeing uniform mixing while reducing energy consumption and cycle times.

2. Precision Weighing System

To prevent moisture accumulation issues common with cement and fly ash, additives are weighed independently. Our computer-controlled measurement system ensures exceptional accuracy and consistency.

3. Reliable Batching System

Featuring industry-standard PLD series batching machines with 2 to 4 customizable aggregate bins and automatic discharging capabilities. Electronic weighing ensures high precision with a tolerance of just 2%.

4. Smooth Aggregate Feeding System

Designed for stable operation and high automation with centralized control. Offers premium choices like double-layer belt structures and herringbone patterns, fully customizable to requirements.

YHZS Series Product Parameters

Comprehensive technical specifications for YHZS mobile concrete batching plants.

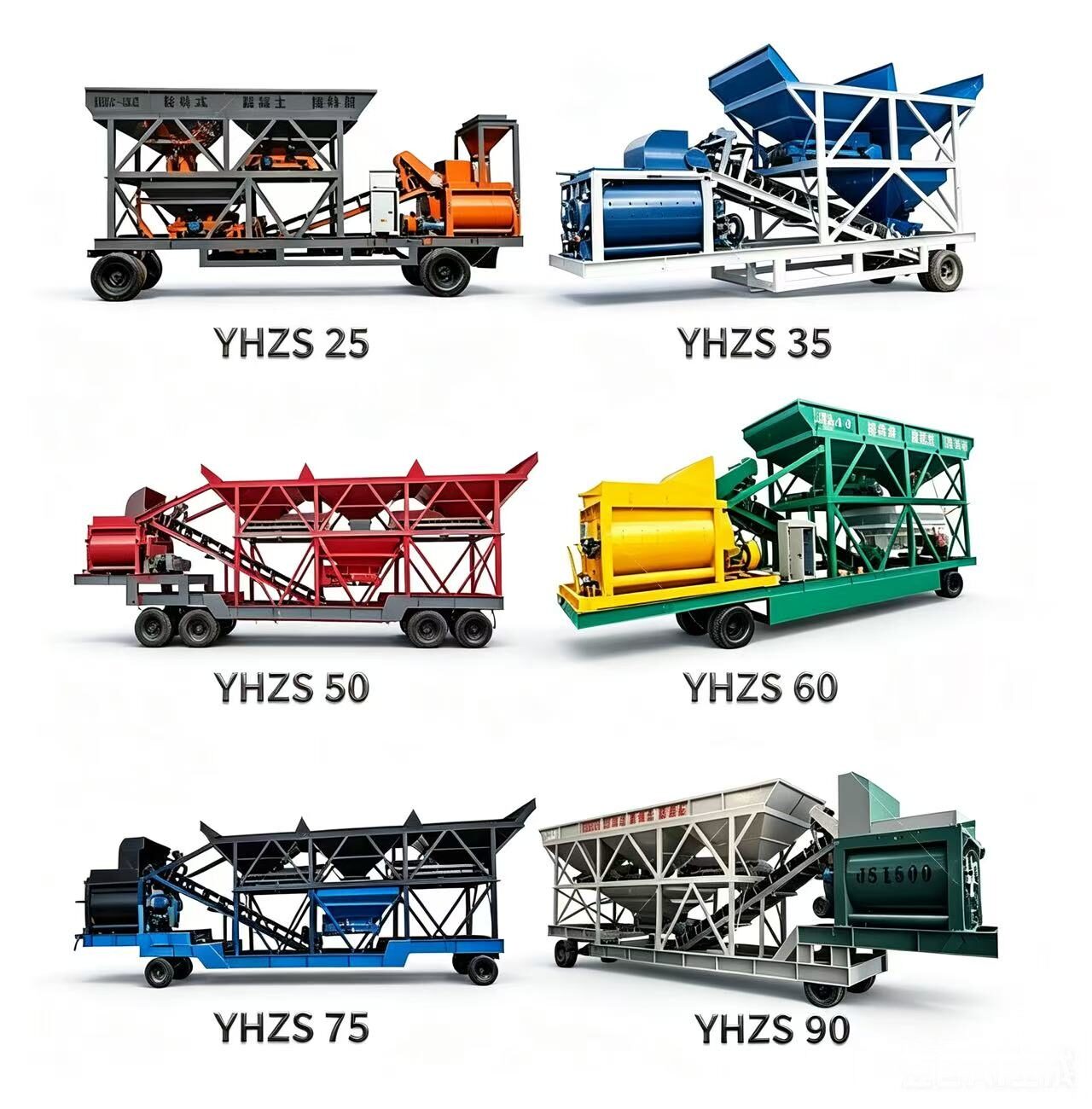

Model YHZS25 YHZS35 YHZS50 YHZS60 YHZS75 YHZS90 YHZS120
Theoretical Production Rate (m³/h) 25 25 50 60 75 90 120
Mixer Type JS500 JS750 JS1000 JS1000 JS1500 JS1500 JS2000
Total Installed Power (kW) 18.5 30 37 2*18.5 44 60 37*2
Cycle 60s 60s 60s 60s 60s 60s 60s
Weighing System 500 750 1000 1000 1500 1500 2000
Max Aggregate Particle Size Φ80mm Φ80mm Φ80mm Φ80mm Φ80mm Φ80mm Φ80mm
Batching Plant 800L 1200L 1600L 1600L 2400L 2400L 3200L
Discharge Height 3.8m/4.2m 3.8m/4.2m 3.8m/4.2m 3.8m/4.2m 3.8m/4.2m 3.8m/4.2m 3.8m/4.2m
Aggregate Weighing Range ≤2% ≤2% ≤2% ≤2% ≤2% ≤2% ≤2%
Cement Weighing Range ≤1% ≤1% ≤1% ≤1% ≤1% ≤1% ≤1%
Fly Ash Weighing Range ≤1% ≤1% ≤1% ≤1% ≤1% ≤1% ≤1%
Water Weighing Range ≤1% ≤1% ≤1% ≤1% ≤1% ≤1% ≤1%

YHZS Series Mobile Concrete Batching Plant — Comprehensive Technical Parameters

“””
print(html_content)

Belt-Conveyor Models: Maximizing Efficiency & Quality

High Efficiency & Energy Savings:
Belt conveyors drastically improve raw material transport rates, making them perfect for large-scale concrete production and mega-projects.
Uncompromised Quality Control:
Continuous production with precise batching and stable material supply ensures highly consistent and reliable concrete quality.
Ideal for Commercial Use:
With high capacity and superior output quality, belt-type plants are the preferred choice for commercial concrete enterprises.

Versatile Applications: Powering Global Infrastructure

  • Water Conservancy & Hydropower: Long-term, stable production of premium-grade concrete to meet stringent dam standards.
  • Commercial & Residential Construction: Continuous, stable supply for high-rises and city-center commercial projects with flawless quality control.
  • Infrastructure Development: Massive uninterrupted concrete supply for roads, bridges, tunnels, and metro systems (YHZS series).

Contact us today to discover the most efficient and cost-effective mobile batching plant tailored to your specific construction needs!

“`
